The gear tooth profile is customized, and the double gears engage tightly when operating so there is no filament slipping when extruding
-
The force of the double-gear is doubled to ensure the stability of printing
-
The gears are made of high-hardness steel and have been heat-treated for higher resistance to wear
Double-gear
Extrusion System
Nozzle with High Durability
Compatible with a variety of Carbon Fiber Composite Filaments

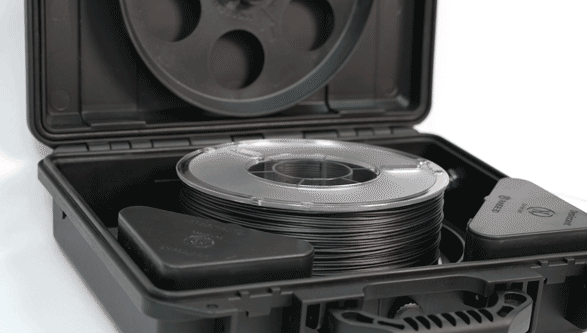

Raise3D Filament Dry Box
.png)
Double-gear Extrusion System

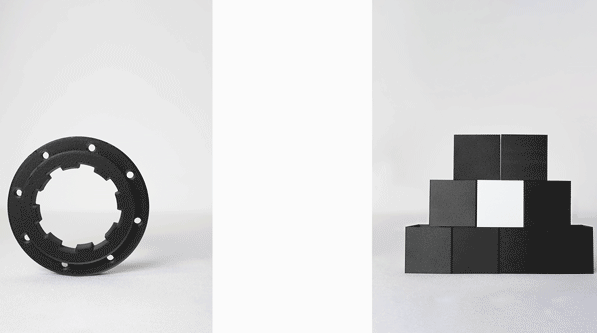

Exclusive Raise3D Industrial PA12 CF Support Filament
Exclusive ideaMaker Slicing Profiles
Automatic Detection
Another safety feature of the E2CF is that it can automatically detect when a door is opened and will immediately pause the print.
Power Loss Recovery
Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process.
However, the E2CF has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job.
It also has a power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.
Compatible with a Variety of Carbon Fiber Composite Filaments
The E2CF is compatible with the Raise3D Industrial PA12 CF Filament, and is also very compatible with high-performance carbon fiber filaments certified by the Raise3D OFP program, such as PA / PPS / PETG and some other high-performance carbon fiber composite filaments from BASF and LEHVOSS.
Technical Specification
GENERAL
Build Volume (WxDxH)
Single Extruder Print
330×240×240 mm
Dual Extruder Print
295×240×240 mm
Electrical
Power Supply Input
100-240 V AC, 50/60Hz 230 V @ 2A
Print Technology
FFF
XYZ Step Size
0.78125, 0.78125, 0.078125 micron
Max Build Plate Temperature
110 ℃
Filament Run-out Sensor
Available
Nozzle Diameter
0.4 mm (Default), 0.6/ 0.8 mm (Available)
Connectivity
Wi-Fi, LAN, USB port, Live camera
Storage Temperature
-25 to 55℃, 10-90% RH non-condensing
Supported File Types
STL/ OBJ/ 3MF/ OLTP
Storage Temperature
-25 to 55℃, 10-90% RH non-condensing
User Interface
7-inch Touch Screen
Screen Resolution
1024×600
Memory
1 GB
Power Supply Output
24 V DC, 350 W
Print Head System
IDEX Independent Dual Extruders
Print Head Travel Speed
30-1 50 mm/s
Heated Bed Material
Silicone
Supported Materials
PA12 CF, PA12 CF Support,
OFP Certified Third-Party Filaments
Hot End
V4P
Noise Emission (Acoustic)
< 50 dB (A) when building
Filter
HEPA filter with activated charcoal
Supported OS
Windows/ macOS/ Linux
Filter
HEPA filter with activated charcoal
Network
Wi-Fi, Ethernet
Motion Controller
Atmel ARM Cortex-M4 120MHZ FPU
Machine Size (WxDxH)
607×596×465 mm
Filament Diameter
1.75 mm
Build Plate
Flexible Steel Plate with BuildTak
Build Plate Leveling
Mesh-leveling with Flatness Detection
Layer Height
0.1 - 0.25mm
Max Nozzle Temperature
300 ℃
Operating Ambient Temperature
15-30 ºC, 10-90% RH non-condensing
Slicing Software
ideaMaker
Machine Code Type
GCODE
Power Loss Recovery
Available
Logic Controller
NXP ARM Cortex-A9 Quard 1 GHz
OS
Embedded Linux
Onboard Flash
8 GB
