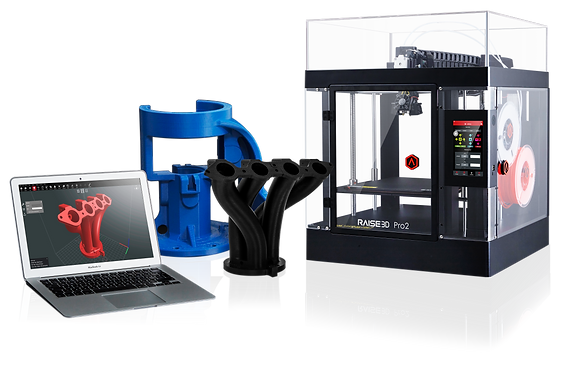

pro2 3d

printer

Industrial Grade Workhorse

An easy-to-use, durable desktop 3D printer ready to improve precision standards, scale production, and add a powerful new manufacturing resource.

Electronic Driven Dual Extrusion with Retracting Hot Ends

Prints complex mechanical parts support a variety of multi-material filaments and improve print speed.

  • High repeatability (<0.005 mm, 5 micron)

  • Lightning speed (< 1 second switching time)

  • 1.5 mm lifting distance, compatible with flexible filaments

  • High reliability (tested > 100,000 times)

High Resolution

Unique motion system for superior part quality and resolution

  • Interchangeable nozzles:

       0.2 mm nozzle for finer X/Y detail.

  • Precise positioning:
    0.78125 micron positioning resolution on X/Y axis

  • Unmatched layer resolution:
    0.01 mm layer thickness

Intuitive user experience

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control

Integrated setting control

On screen assistent

7 inch touch screen

Visual model selection

Build Plate System

Excellent warping prevention / Even heat distribution / Longer lifetime / Easy to remove

Aerospace grade material

High temperature silicone heating bed

Magnetically-held aluminium bed

Improved 4+9 points lock system

Technical specification

GENERAL

Build Volume (WxDxH)

Single Extrusion Print:
12×12×11.8 in / 305×305×300 mm

Dual Extrusion Print:
11×12×11.8 in / 280×305×300 mm

Machine Size (W×D×H)

24.4×23.2×29.9 in / 620×590×760 mm

XYZ Step Size

0.78125, 0.78125, 0.078125 micron

Build Plate

Heated aluminum build plate with magnetic holding

Build Plate Leveling

Pre-calibrated leveling

Max Nozzle Temperature

300 ºC

Storage Temperature

-25 to 55℃, 10-90% RH non-condensing

Print Technology

FFF

Filament Diameter

1.75 mm

Max Build Plate Temperature

110 ℃

Operating Ambient Temperature

15-30 ºC, 10-90% RH non-condensing

Connectivity

Wi-Fi, LAN, USB port, Live camera

Technical Certifications

CB, CE, FCC, RoHS, RCM

Print Head System

Dual-head with electronic lifting system

Print Head Travel Speed

30 – 150 mm/s

Heated Bed Material

Silicone

Nozzle Diameter

0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm

Noise Emission (Acoustic)

<50 dB(A) when building

Supported Materials

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

ELECTRICAL

Power Supply Input

100-240 V AC, 50/60 Hz 230 V @3.3 A

SOFTWARE

Slicing Software

Supported File Types

ideaMaker

STL/ OBJ/ 3MF

Power Supply Output

24 V DC, 600 W

Supported OS

Windows/ macOS/ Linux

Machine Code Type

GCODE

Printer Controller

User Interface

7-inch Touch Screen

Network

Wi-Fi, Ethernet

Screen Resolution

1024×600

Motion Controller

ARM Cortex M7.400MHZ FPU

Resume Print after Power Outage

Firmware recording, no need for battery installation.

Logic Controller

Freescale i.MX6, Quad core 1Ghz ARM processor

Memory

1GB

Onboard Flash

8GB

OS

Embedded Linux

Ports

USB 2.0×2, Ethernet×1
